Encoder Absoluto PWE 008 BLG - 8 posições - Máquina Romi
Encoder Absoluto PWE 008 BLG - 8 posições - 45°
Usado em Máquinas CNC Romi Cosmos 30U e Galaxy 15S
Características
- Eixo de centragem 40 mm
- Diametro do Eixo: 6mm
Número de passos por revolução máx. 256
Saída por Código Grey e código binário
Frequência de saída máx. 300.000 Hz
Saída push-pull compatível com EMC protegida por de circuito de sobrecarga

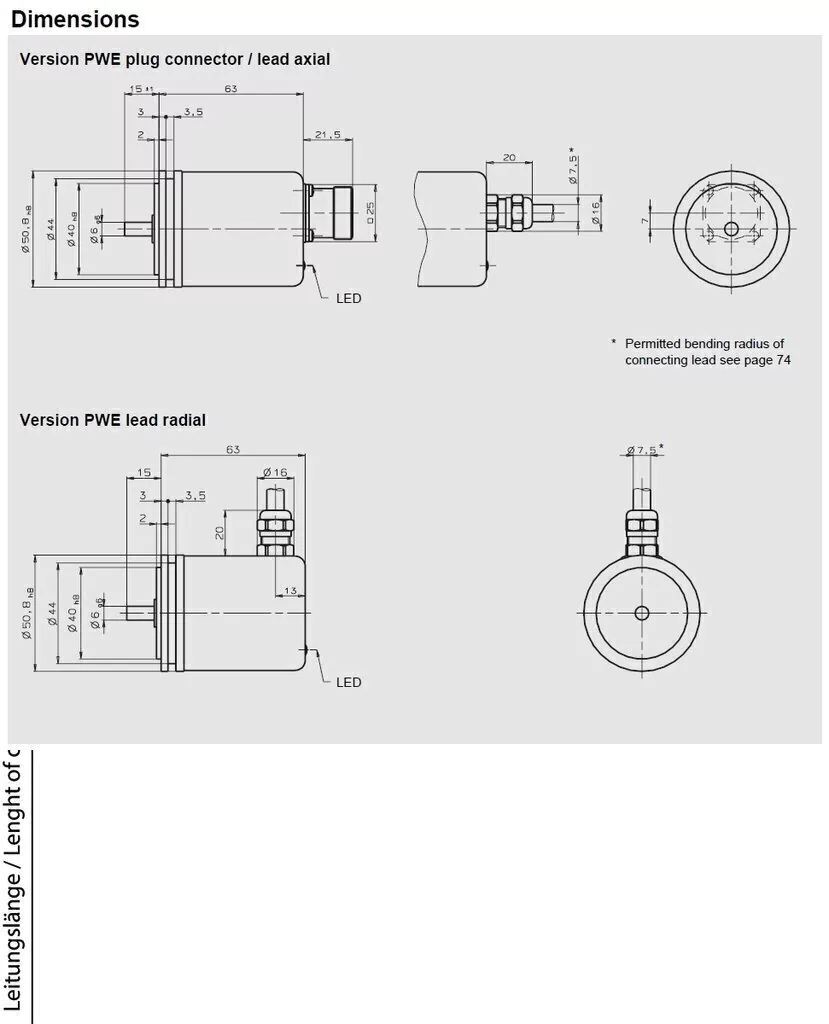

Model PWE - Centring boss 40 mm
Technical Data
Measuring parameters |
Value |
Unit |
Number of steps per revolution |
max. 256 |
|
Measuring step (resolution) á |
min. 1.406 |
° |
Error limit |
á/2 |
° |
Pitch code |
Gray, gray excess, binary |
|
Output code |
Gray, gray excess, binary |
|
Code direction (of rotation) |
clockwise (cw) or counter-clockwise (ccw) |
|
Mechanical parameters |
|
|
Housing material |
aluminium |
|
Weight |
0.25 |
kg |
Housing diameter |
50.8 |
mm |
Shaft material |
stainless steel |
|
Shaft diameter |
6 |
mm |
Mech. operating speed, max. |
3,000 |
rpm |
Starting torque, typical |
0.02 |
Nm |
Operating torque at 500 rpm, typical |
0.02 |
Nm |
Mass moment of inertia (rotor) |
2.5 x 10-6 |
kg m2 |
Max. axial shaft load |
25 |
N |
Max. radial shaft load |
40 |
N |
Bearing service life at max. operating speed and load |
4 x 1010 |
U |
Operating temperature range |
0 to +50 |
°C |
Storage temperature range |
-20 to +50 |
°C |
Environmental protection to EN 60529 |
IP 65 |
|
Resistance to vibration |
||
Oscillation DIN / IEC 68-2-6 (3 axes) |
10 - 55 Hz, amplitude 1 mm, 6 cycles of 5 min |
|
Shock DIN / IEC 68-2-27 (3 axes) |
6 shocks semi-sine, 18 ms, 30 g |
|
Electrical parameters |
|
|
Output circuit |
push-pull |
|
Operating voltage range UB |
15 to 30 |
V DC |
Operating current (without load) |
< 50 |
mA |
Output voltage UA at max. output current |
||
UA (HIGH; 1), min. |
UB - 3 |
V |
UA (LOW; 0), max. |
3 |
V |
Output current per output max. |
30 |
mA |
Overload/short-circuit protection |
non-latching thermal cutout |
|
EMC protection requirements to |
met |
|
Output frequency max. |
300,000 |
Hz |
Connection type |
|
|
PUR shielded lead, length 2 m |
● |
|
Plug connector 12-pin male |
● |
|
Pin Assignment
Designation |
Wire colour |
Connector pin |
Designation |
Wire colour |
Connector pin |
Output 1 |
BK |
1 |
Output 7 |
GY |
7 |
Output 2 |
WH |
2 |
Output 8 |
RD |
8 |
Output 3 |
YE |
3 |
- |
not assigned |
9 |
Output 4 |
GN |
4 |
Shield |
transparent |
housing |
Output 5 |
VT |
5 |
0 volts |
BU |
11 |
Output 6 |
PK |
6 |
+UB |
BN |
12 |
- NCM: 9031.8099
Consulte-nos sobre a sua necessidade!
Encoder Absoluto | Codigo | Descrição |
PWE 008 BRG | 053130 | 8 posições - 45° |
PWE 0012BRG | 053135 | 12 posições - 30° |
